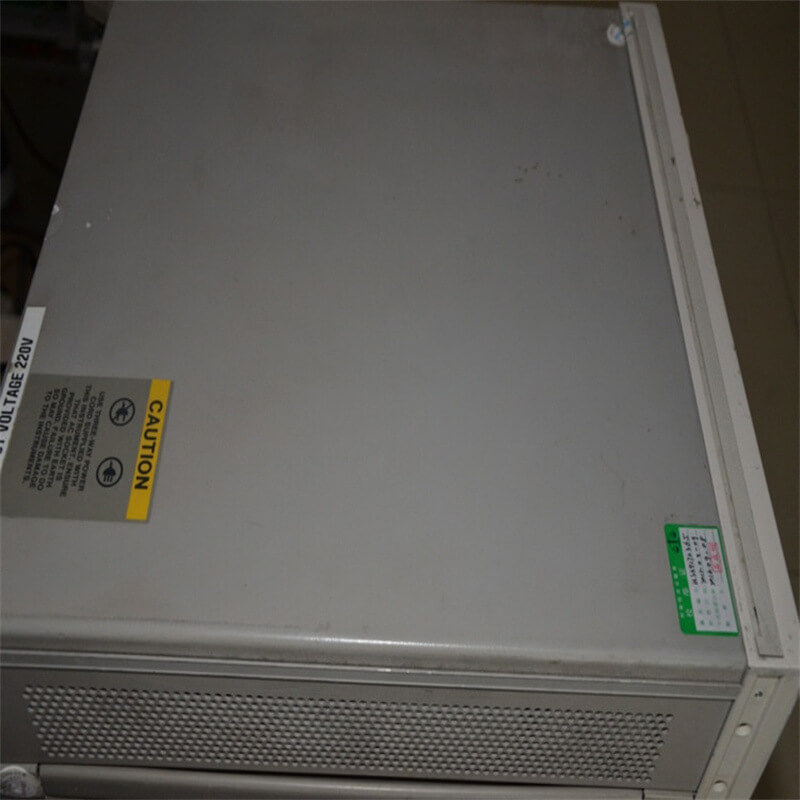

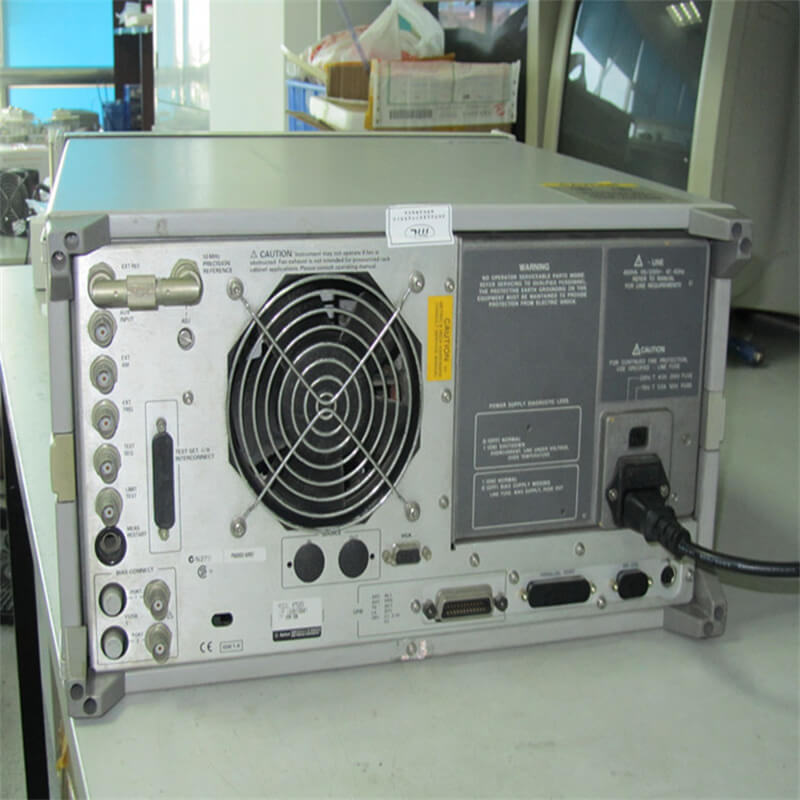

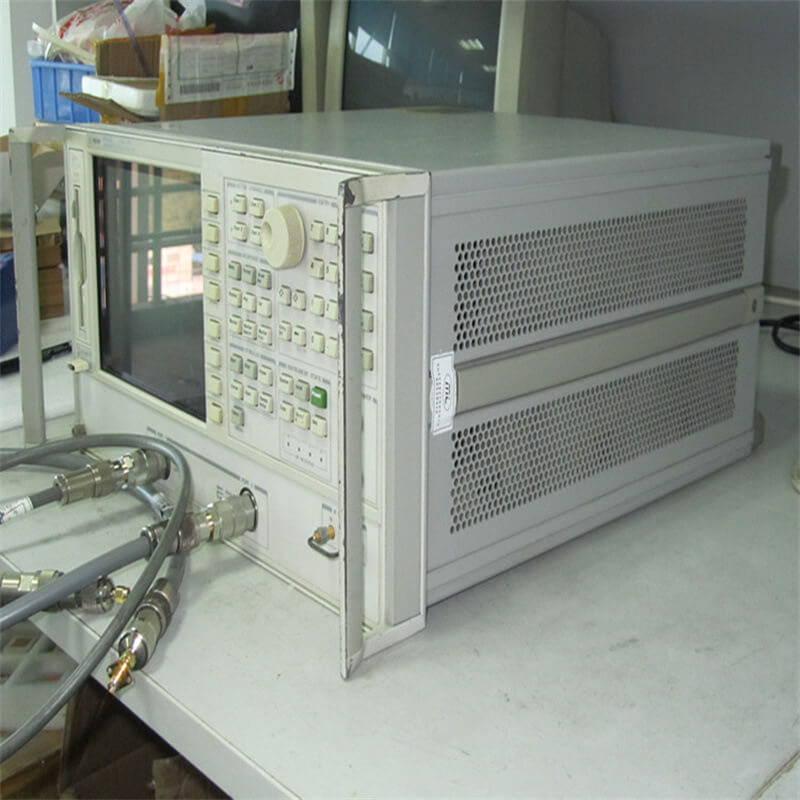

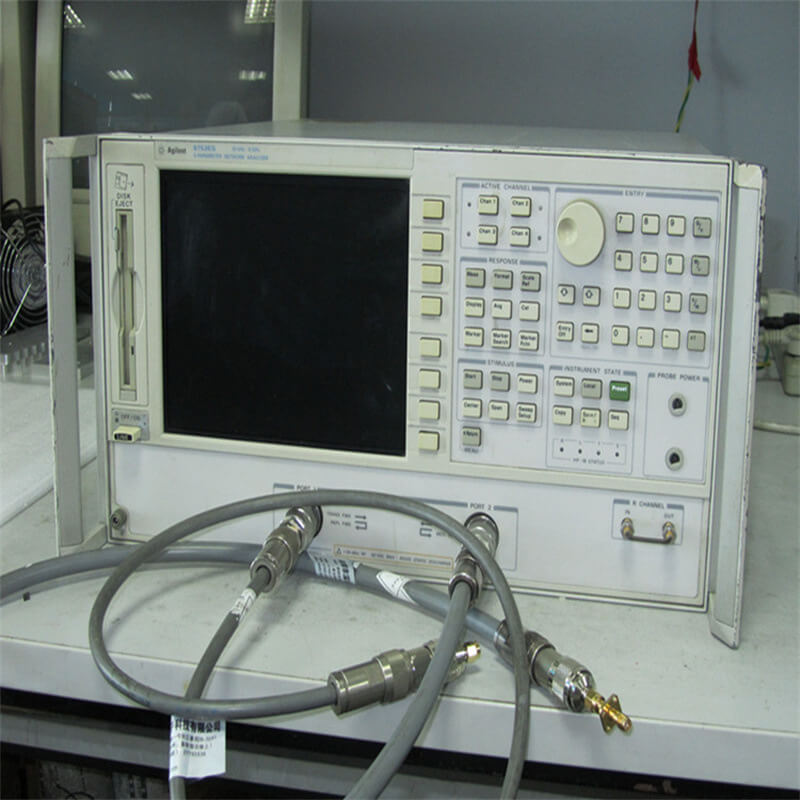

Agilent Network Analysis

8753ES-1

Part NO.:8753ES

Tags: analyzer

Features:

  • Frequency range: 30kHz -3 or 6GHz

  • Integrated T/R or S parameter testing device

  • Dynamic range up to 110dB

  • Fast measurement speed and data transfer rate

  • Large screen LCD display with VGA output for external use

Contact us

Main Specifications
Impedance  100ohm
Frequency Range DC- 2 GHz
Insertion Loss 0.1 dB max from DC – 2GHz
Current Rating 1000 MΩ MIN.
Contact Resistance Center Contact: ≤ 10 MΩ MIN.

Outer Contact: ≤7.5 MΩ MIN.
Working Temperature – 40°C to +105°C
