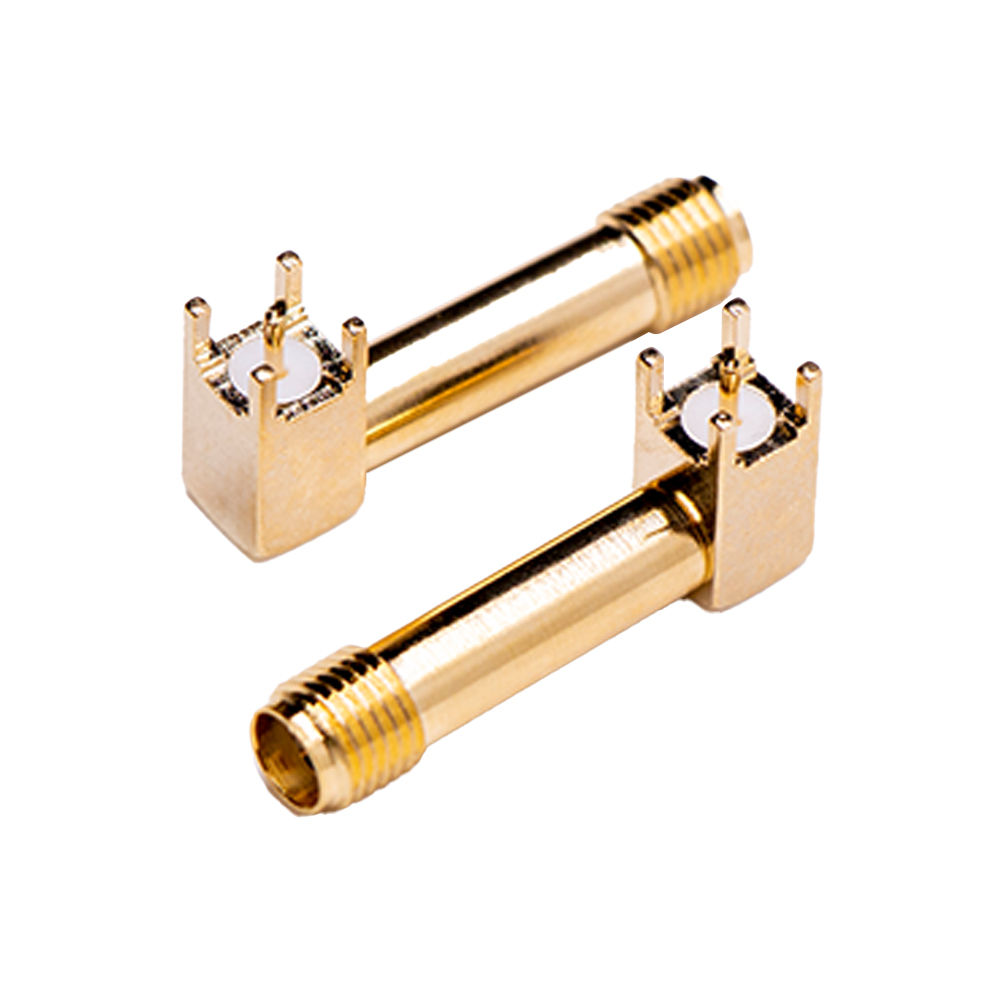

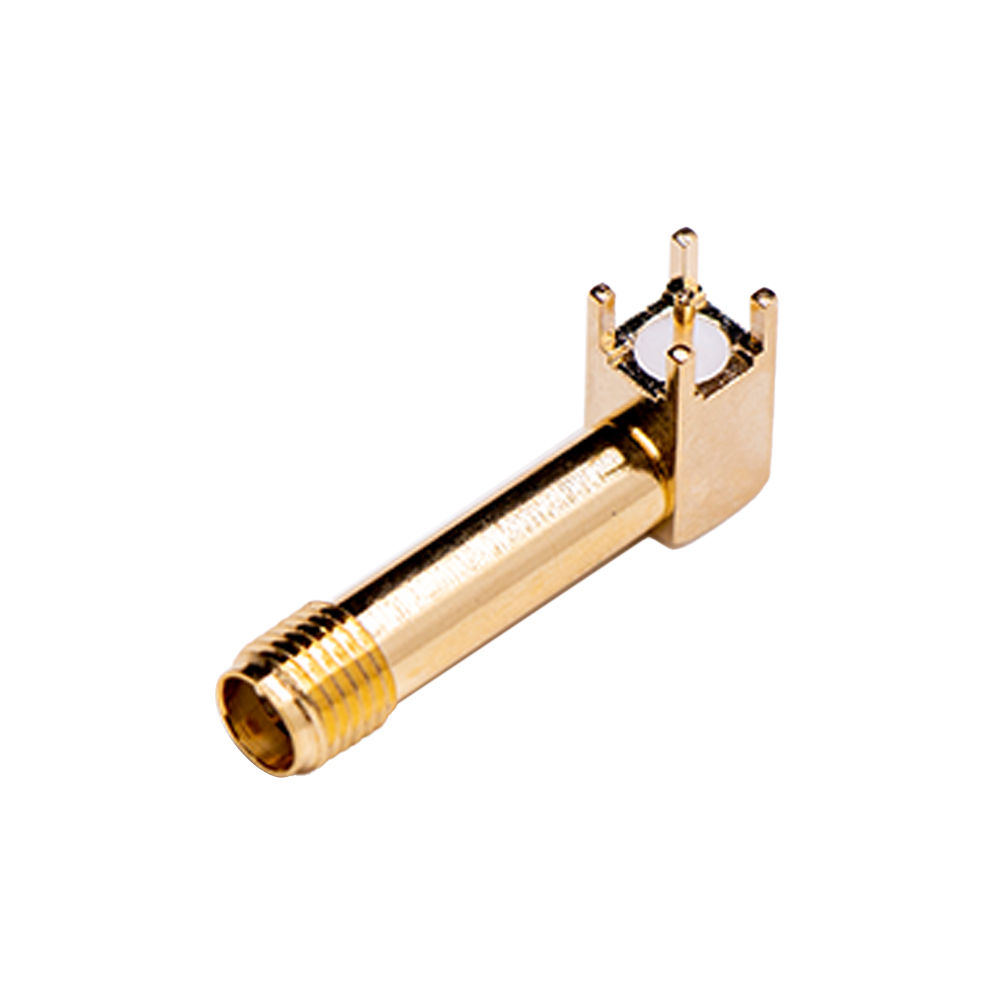

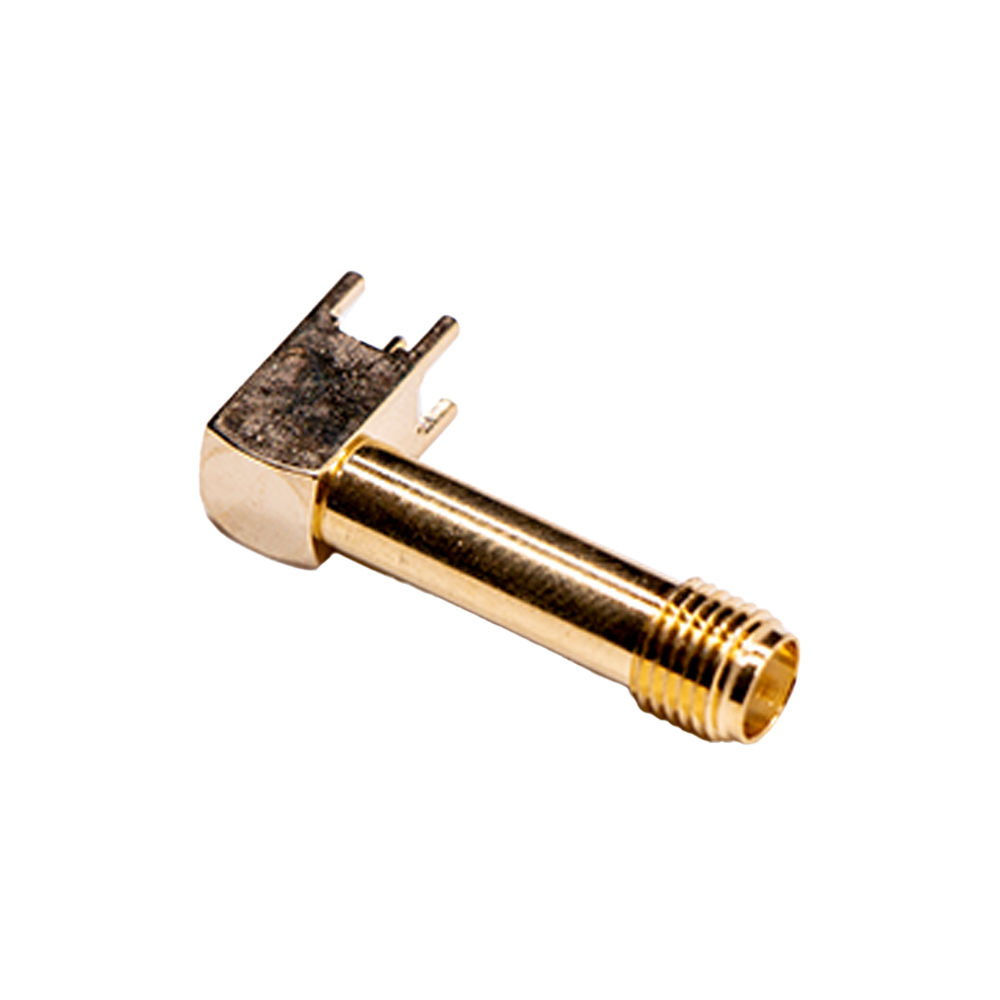

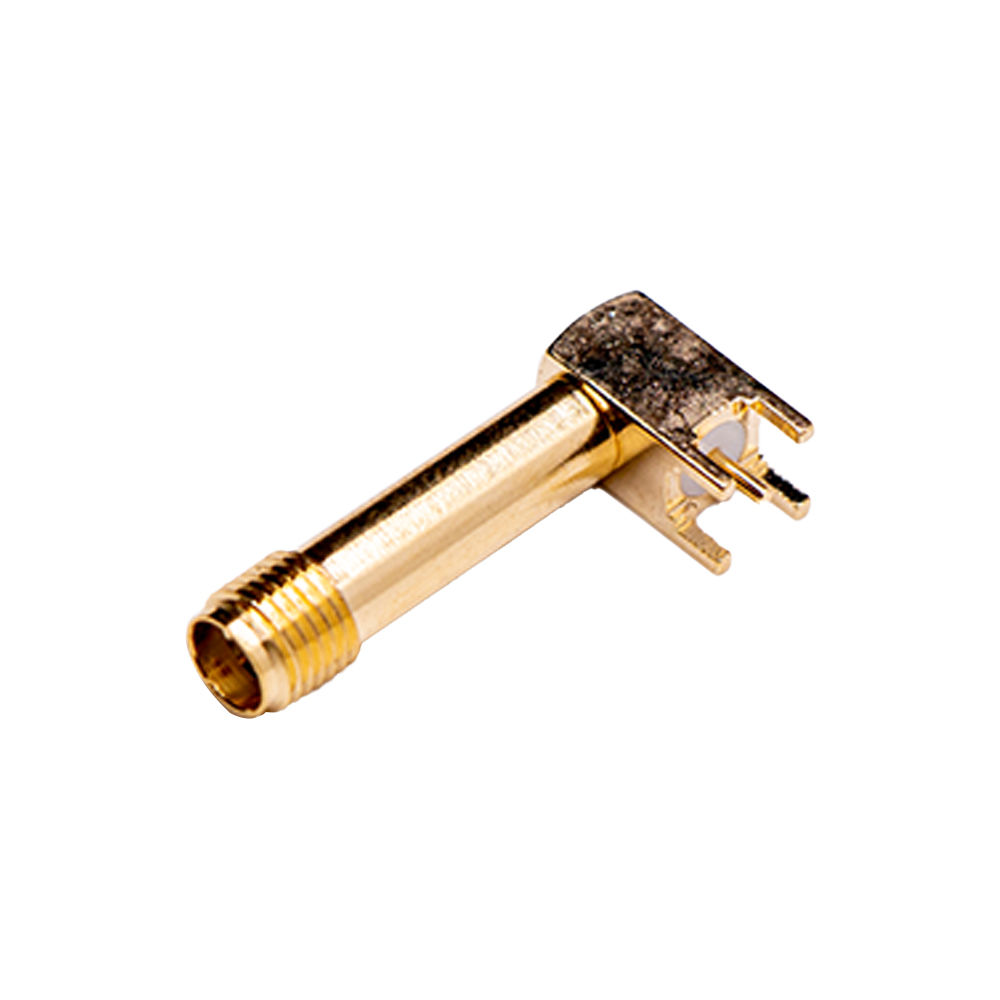

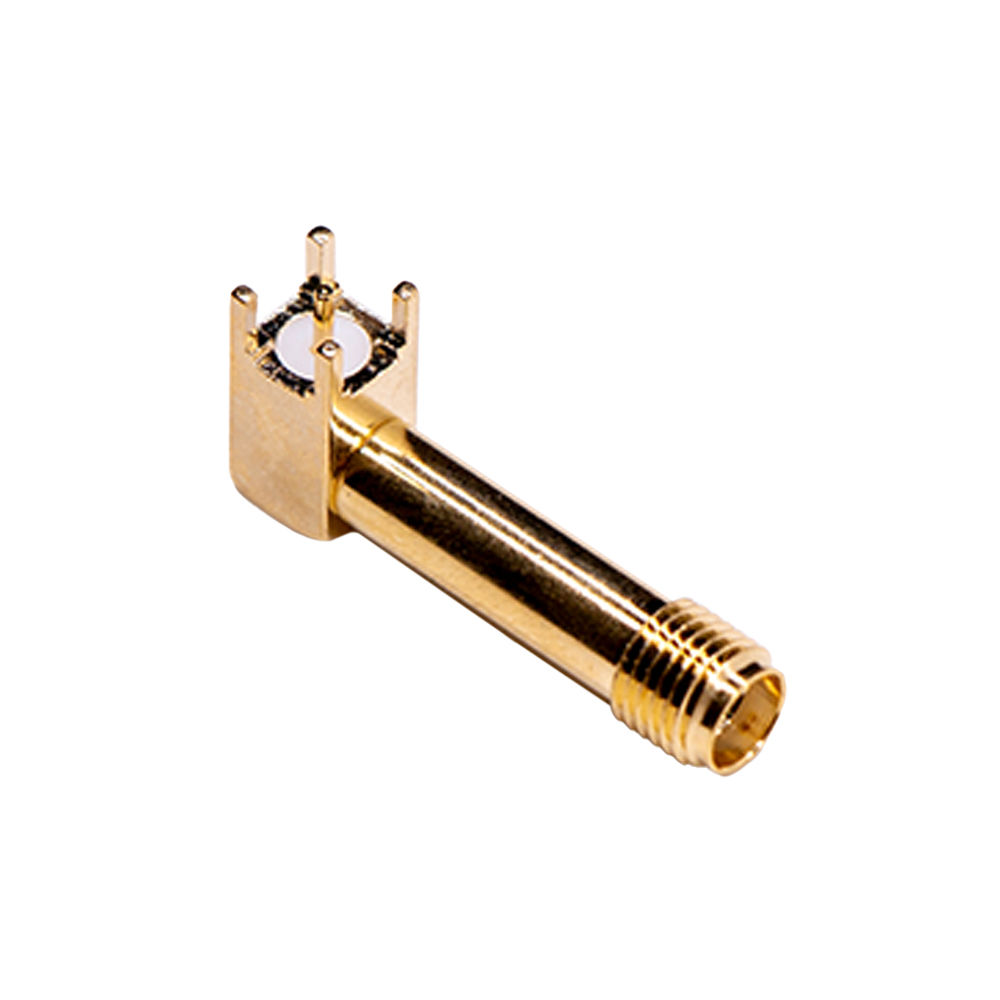

DXRD-SMA127

RF-Connector-SMA127
RF-Connector-SMA127
RF-Connector-SMA127
RF-Connector-SMA127
RF-Connector-SMA127
RF-Connector-SMA127
RF-Connector-SMA127

Part NO.:DXRD-SMA127

Size:L15.00*W7.00*H12.85 mm

Tags: RF Connector,SMA Female,PCB Mount,Angled/90°

Features:

  • High quality SMA rf connector(small A type connector), high microwave frequency up to 18 GHz for wireless antenna applicaiton.

  • 1/4-36UNS thread connection to ensure stable performance in vibrating environment. Made according to MIL-C-39012 standard to meet ROHS requriement.

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us
Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C
