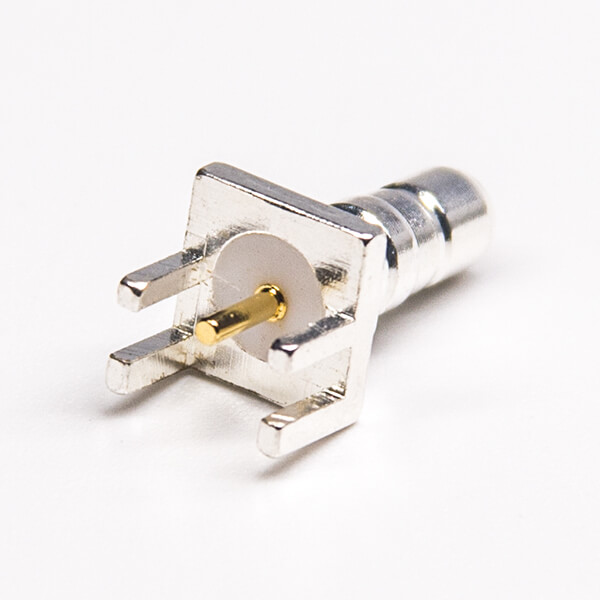

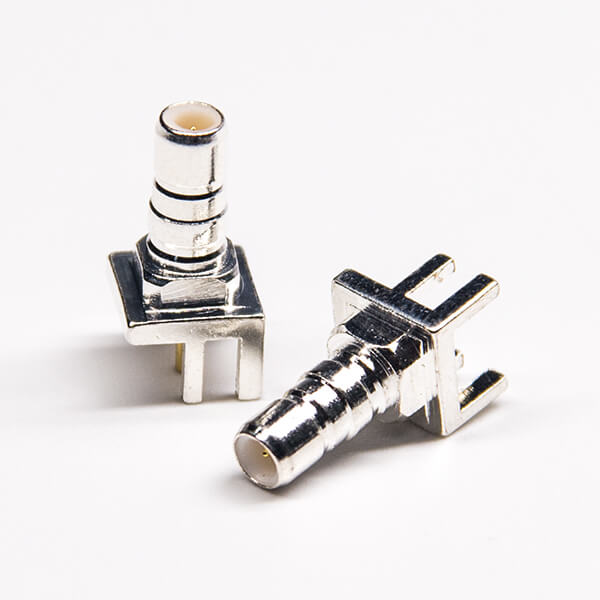

Straight SMB connector to PCB board male socket connector

DXRD-SMB003-1

Part NO.:DXRD-SMB003

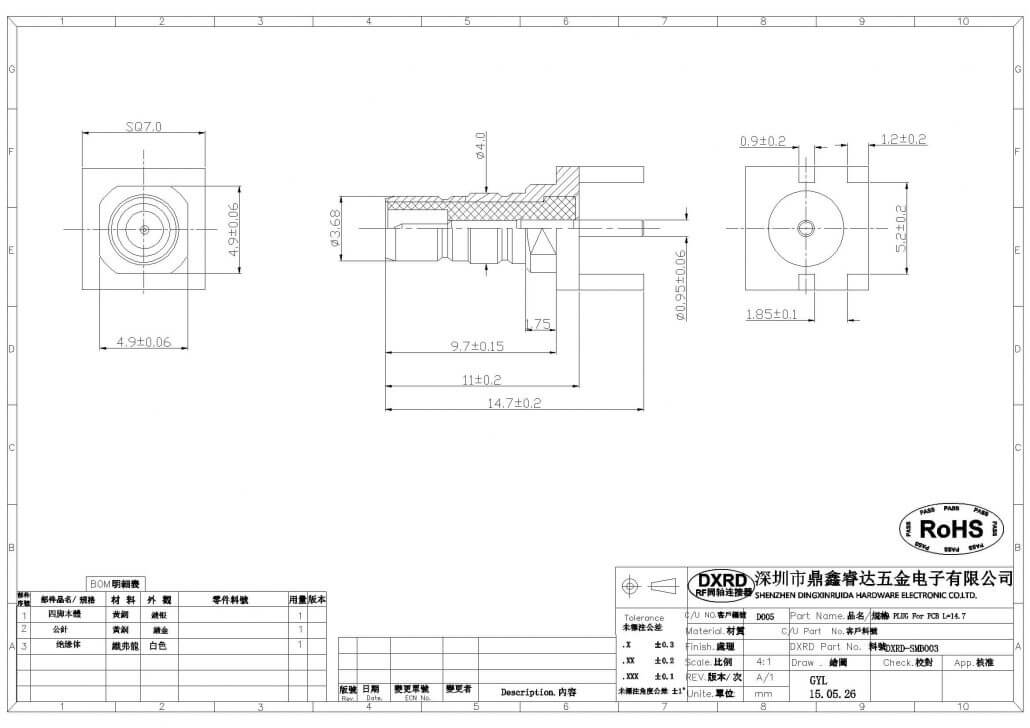

Size:L15.00*W7.00*H12.85 mm

Tags: RF Coaxial Connector,SMB Male,PCB Mount,Straight

Features:

  • High-performance SMB connector, broadband, low reflection;

  • Non-critical areas are produced by die-casting, which saves costs and does not affect performance;

  • Multi mode and specification for choice. OEM&ODM acceptable.

  • FREE samples for test with 1 year’s warranty.

Contact us

Main Specifications
Frequency Range DC-6GHz
Insulation Resistance ≧ 500MΩ
Voltage Rating 60V AC(rms)
Current Rating 0.5A AC
Withstanding Voltage 200V AC
Working Temperature -40°C to +90°C
